The Advanced Lifting and Lowering Kit is a comprehensive kit allowing multiple configurations for lifting, lowering and directing loads.
Mechanical efficiency and lowering control can be adapted to match load and application.
Designed to provide a comprehensive selection of components for lifting / lowering and directional control of loads and is ideally suited to the renewables, construction and telecoms industries.

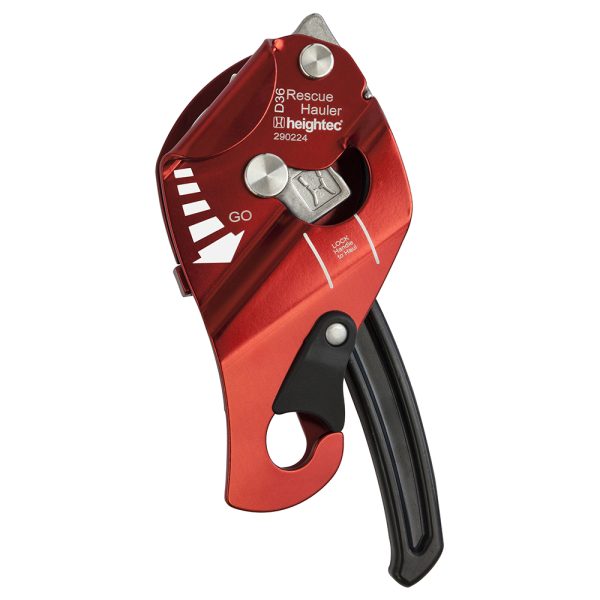

Features the NEW RescueHauler rope control device. Provides a hands free progress capture (locking), and friction control (lowering) function and can be changed from lift to lower whilst under load.
Simple – Single cam design provides precision control when lowering
Safe – The dual safety braking function increases reliability and safety
Tough – Designed for extended use in aggressive environments
The RescueHauler rope controller has a default auto locking function when the handle is released and a progressive secondary brake if the handle is pulled sharply in panic. This mechanism is typically more intuitive for users than devices that trip out and require resetting.

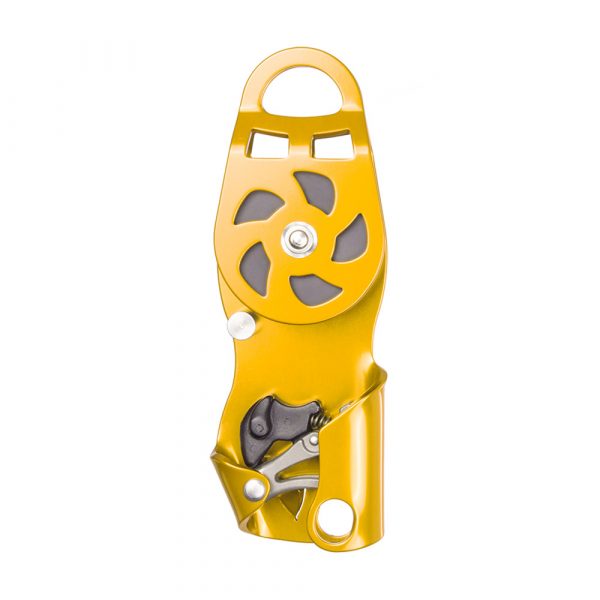

HURRICANE hauling device allows a “Z” rig (3:1) pulley system to be added or removed quickly and easily in just one step.

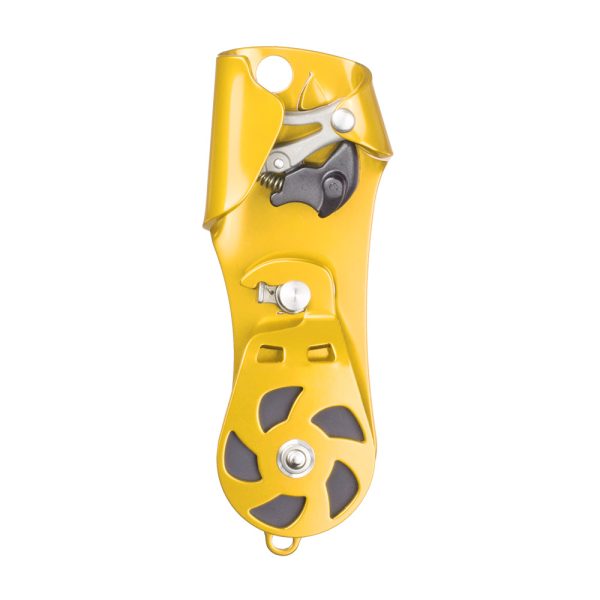

The CYCLONE is a pulley with a selectable built in progress capture to hold the load.
The additional pulley can be used for redirection, to move the user away from the load route, or increasing mechanical advantage, to make a “V” rig (2:1) as required.

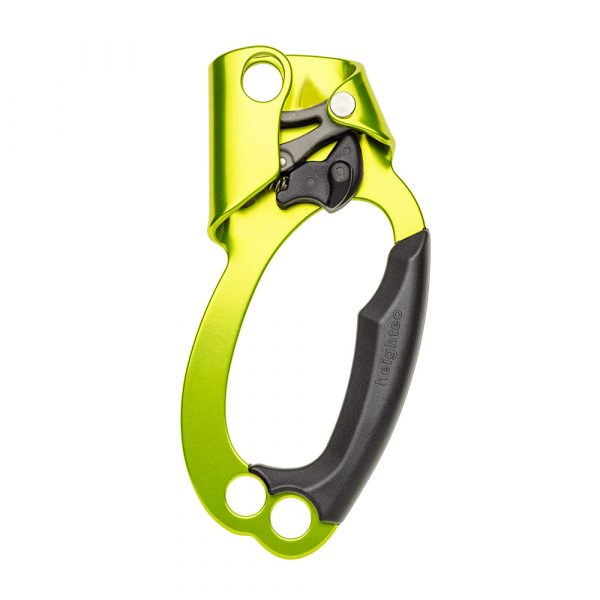

The PULSAR provides addition manual rope grip and enables greater pulling force for the user.
Comes complete with our versatile KARI 30 transport bag. heightec’s KARI bag range is tough, waterproof and suitable for storage and hauling. Designed specifically for work at height and rescue, the KARI transport bag range brings all the features of traditional dry bags but with increased protection. Different styles available for different functions – personal kits, rescue systems, rope, tool bags etc. View the full range here.
Ideally suited for loads of upto 100kg.

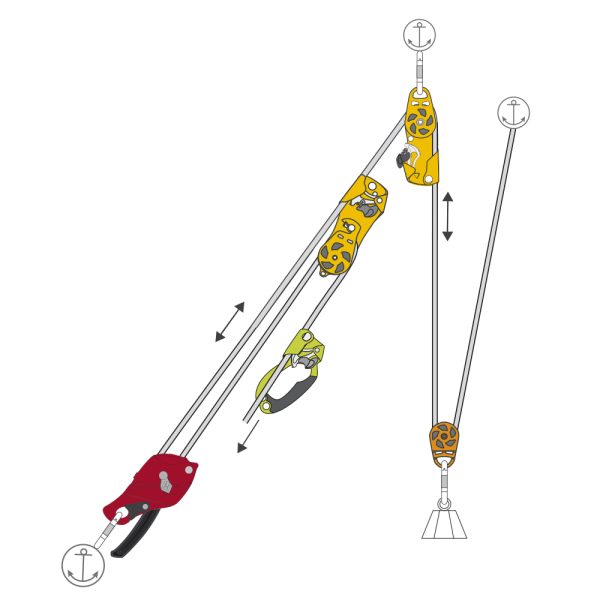

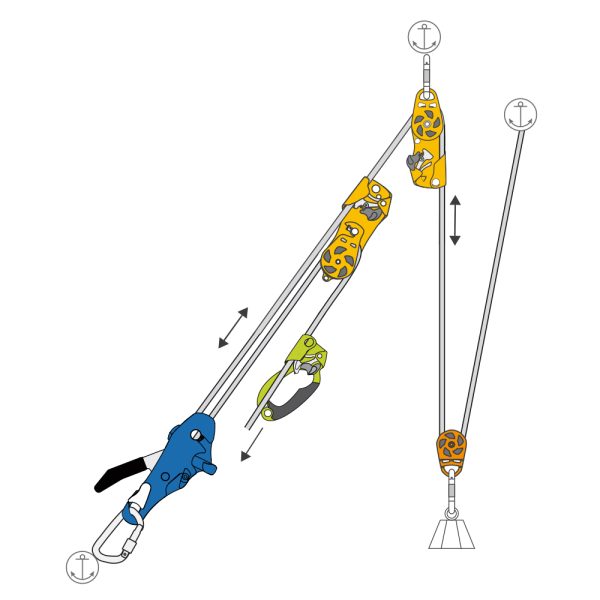

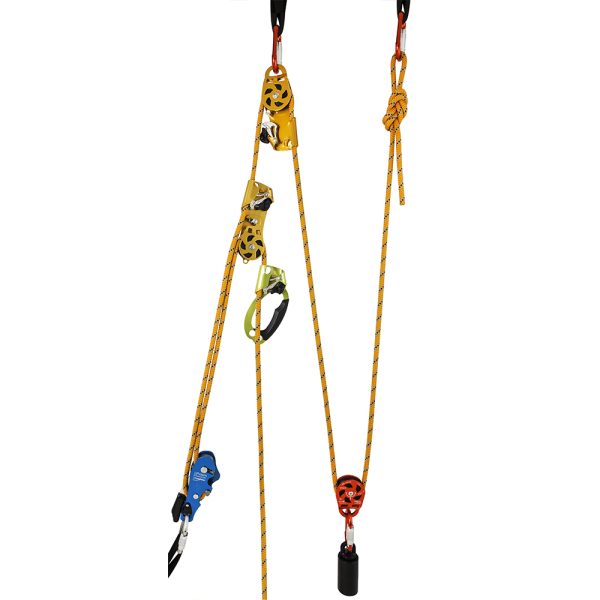

Use 2 kits to produce a hauling system with tensioned / pilot line
The Advanced Lifting and Lowering Kit comes complete with:
- RescueHauler descender/rope control device
- HURRICANE hauling device
- CYCLONE hauling pulley
- PULSAR handled rope grab
- 50 mm pulley
- 11 mm diameter rope with sewn terminations for safety & strength
- Load rated KARI 30 bag
- 120cm protected sling x 3
- Triple action alloy karabiners x 4
Use 2 kits to produce a hauling system with tensioned pilot line.
Lengths available:
- 50 m (WK55050)
- 100 m (WK55100)
Commodity Code: N/A
Country of Origin: UK
Also available:
Work at Height First Aid Pack – portable kit for use on high structures. Compliant with BS8599-1:2019. Can be attached to harness for easy transport. Contained in rucksack style case, with prominent reflective markings, zip around opening and a robust carry handle with attachment loop for clipping to a harness.
DUON Air helmet with dual conformity and 7 points of adjustment, providing exceptional fit, stability and comfort. DUON is the only helmet that has full compliance with two European standards, EN 397 and EN 12492, having a special chin strap buckle with a variable fastening power and variable venting.
