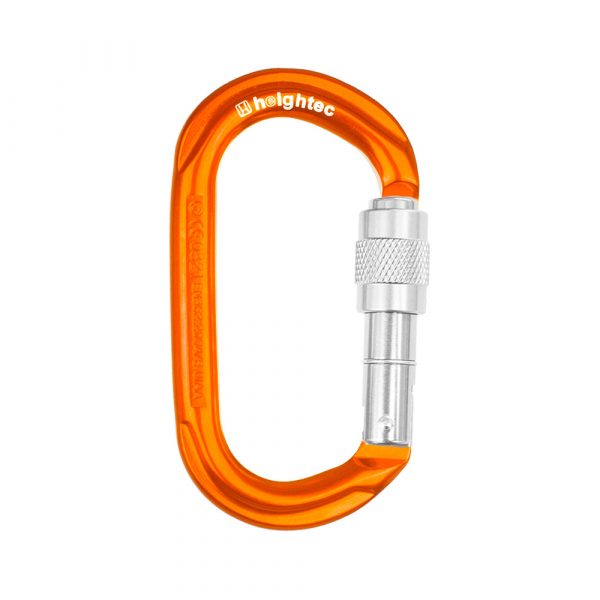

ALTO oval screwgate karabiner

A multi-purpose oval karabiner with screwgate closure.

Learn More
Alloy oval screwgate karabiner

A multi purpose alloy oval karabiner with screwgate closure.

Karabiner orientates to the optimal working axis when loaded.

Oval shapes provides exceptional strength to weight ratio.

17 mm gate opening.

Also available with triple action closure – please see ALTO oval tri-act karabiner (CKA5).

Commodity Code: 7616999099

Country of Origin: Taiwan

Also Available:

The DUON-Air vented helmet offers ultimate head protection for all work at height industries. The vented safety helmet features a unique chinstrap buckle with variable fastening power allowing users to be fully compliant in complex environments containing different, changing hazards. The first height safety helmet to fully conform to European Standard requirements for industrial and climbing situations.

Critical Injury Pack is now specified as part of the recommended first aid provision for all high risk environments under the Mast & Tower Safety Group (MATS) First Aid For Working At Height Guidance (GN-009).

Work at Height First Aid Pack – portable kit for use on high structures. Compliant with BS8599-1:2019. Can be attached to harness for easy transport. Contained in rucksack style case, with prominent reflective markings, zip around opening and a robust carry handle with attachment loop for clipping to a harness.

Please note heightec have made corrections to the User Instructions for heightec connectors owing to an administrative error in the detail of Notified and Approved Body information included.

References to Notified Body (CE) / Approved Body (UKCA) were incorrectly indicated in a small number of instances.

The safety of the products and their markings are unaffected and were correct in all cases. We have now corrected the relevant User Instructions.

Where reference is made to CE0194 and CE0321 (Pre-Brexit Notified Body status) these are correct and reference the body responsible for conformity (Module D) when the item was placed on the market.

More recently, post-Brexit, both Notified Bodies have become Approved Bodies under UKCA and have had their Notified Body (CE) status removed.

All products placed on the market after this change will indicate UKCA 0194 and UKCA 0321.

Features

  • Aluminium alloy
  • Anodised
  • Screwgate
  • Gate opening 17 mm

Specifications

Sizing: L 112mm, W 63mm, Ø 12mm
Material: Anodised Aluminium alloy
EN Mass Test: N/A
Loading: 22kN major axis, 8kN minor axis, 7kN major axis - gate open
Weight: 0.08 kg
Conformity: EN362:2004/B
