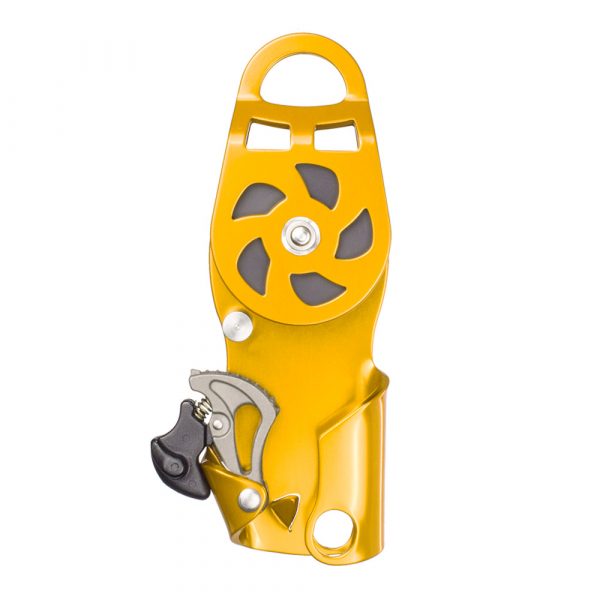

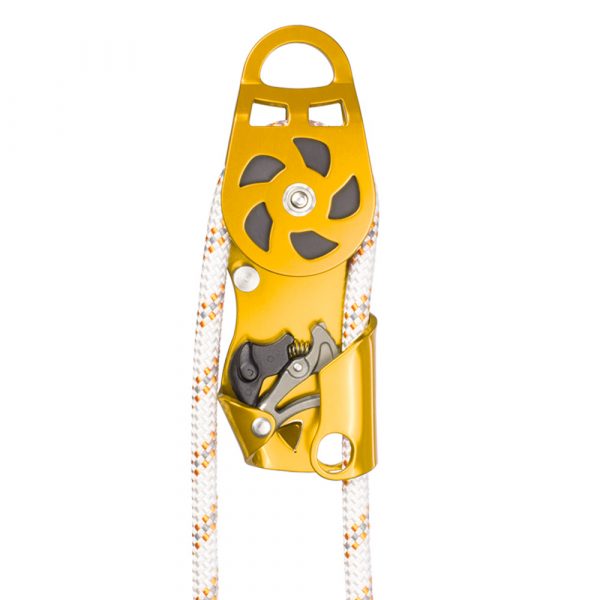

CYCLONE heavy duty hauling pulley with locking cam

Locking cam pulley specifically designed for technicians to aid hauling of equipment and materials.

Learn More

The CYCLONE is a heavy duty hauling pulley with locking cam for demanding environments.

Specifically designed for technicians to aid hauling of equipment and materials.

X-Cam has a more advanced tooth design than traditional cams and is more suitable for industrial applications as it does not pluck the rope, so reducing rate of rope wear.

CYCLONE Heavy Duty Hauling Pulley Additional Features:

  • 50mm, low friction integrated pulley wheel
  • Lightweight alloy construction
  • Simple, clean design for ease of rigging.
  • Low friction integral pulley wheel.
  • Unique ‘X Cam’ locking mechanism.
  • Does not jam, even against knots.
  • Provides high degree of grip on ropes of varying condition including rupture of the sheath.
  • 100 kg safe working load.

For use with 10.5 mm to 11.0 mm diameter rope.

NB: The CYCLONE is not certified for lifting persons.

The CYCLONE is a core component of heightec’s Advanced Lifting and Lowering Kit (RescueHauler). A comprehensive kit allowing multiple configurations for lifting, lowering and directing loads. Features the NEW RescueHauler rope control device. Provides a hands free progress capture (locking), and friction control (lowering) function and can be changed from lift to lower whilst under load.

X-Cam™ design gives increased performance over traditional sharp tooth design

  • Cam exerts considerable grip on rope after sheath has broken
  • Cam doesn’t pluck rope
  • Easy to remove from rope if accidentally jammed into knot
  • Highly effective on angled ropes

Commodity Code: 7616999099

Country of Origin: UK

Also available:

Work at Height First Aid Pack – portable kit for use on high structures. Compliant with BS8599-1:2019. Can be attached to harness for easy transport. Contained in rucksack style case, with prominent reflective markings, zip around opening and a robust carry handle with attachment loop for clipping to a harness.

DUON Air helmet with dual conformity and 7 points of adjustment, providing exceptional fit, stability and comfort. DUON is the only helmet that has full compliance with two European standards, EN 397 and EN 12492, having a special chin strap buckle with a variable fastening power and variable venting.

Made in Britain Horizontal logo - Colour

Specifically design to aid hauling of equipment

Features

  • Lightweight alloy construction
  • Simple clean design for ease of rigging
  • Low friction integrated pulley wheel
  • Unique ‘X Cam™’ locking mechanism
  • 100 kg Working load

Specifications

Sizing: For use with 10.5 mm to 11.0 mm diameter rope.
Material: Alloy body, stainless cam, nylon wheel
EN Mass Test: N/A
Loading: 100 kg SWL
Weight: 0.365 kg
Conformity: 2006/42/EC
