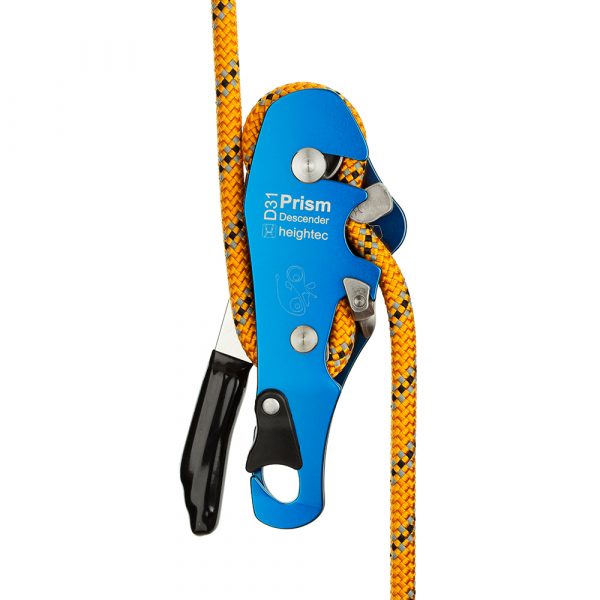

PRISM Rope Access Descender

Variable friction and high capacity rope access descender for abseiling, ascending, lowering, hauling and rescue.

Learn More

The multifunctional PRISM rope access descender device is specifically designed for rope access. Can be used for abseiling, ascending, lowering, hauling and rescue.

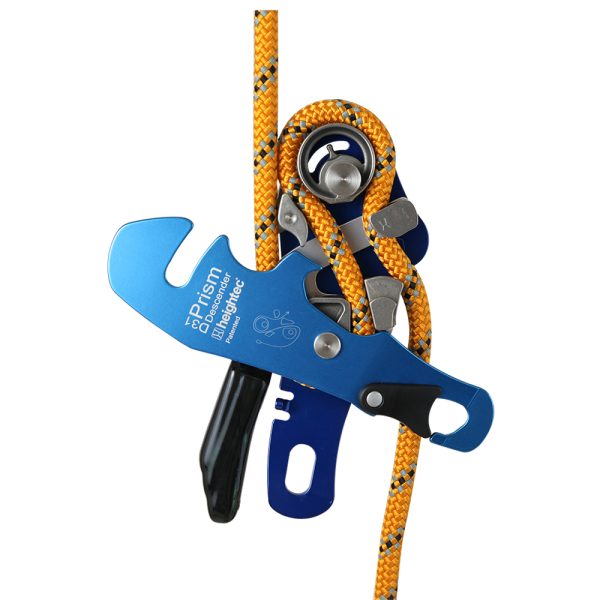

Multiple threading configurations provide different levels of friction. The user can switch from one configuration to the other while the device is loaded:

Normal Friction – will brake if the handle is released or if it is squeezed fully. The PRISM descender does not require additional friction from a second karabiner to hold higher loads.

Reduced Friction – used for: ascending, paying rope in and out, or under partial load, such as when moving across a horizontal surface towards an edge prior to abseiling.

The PRISM rope access descender meets the selection criteria of IRATA International Code of Practice, March 2013, 2.7.5.4.

Will lock if handle is released or squeezed too hard. Suitable for 2 person loads.

The duo brake mechanism increases friction under heavy loading and reduces rate at which friction is released.

Inspection and cleaning is simple as all the device component parts are easily visible and accessible.

Stainless steel friction surfaces for reduced wear and consistent performance.

The PRISM can be used as a releasable anchor in rig for rescue systems.

Rope diameter: 10.5 mm – 11.5 mm

The PRISM rope access descender device provides a hands free locking function and can be changed from lift to lower whilst under load. It is a core component in the Advanced Lifting and Lowering Kit.

Rope diameter: 10.5 mm – 11.5 mm

Commodity Code: 7616999099

Country of Origin: UK

Made in Britain Horizontal logo - Colour

D31 Prism Section Image 1600x450

Features

  • Multiple configuration, can change between configurations under load
  • High 200kg load rating, suitable for rescue
  • Double-braking mechanism
  • Robust, high strength aluminium with stainless steel friction surfaces
  • All component parts visible for easy inspection and maintenance

Specifications

Sizing: Rope diameter 10mm - 11.5mm
Material: Aluminium and stainless steel
EN Mass Test: 200 kg
Loading: 200 kg SWL
Weight: 0.45 kg
Conformity: EN12841:2006 (Type C), EN341 (Type B),
