GRATEMATE – lightweight rope protector for metal or composite grating walkways

GRN rope protector for metal or composite grating walkways.

Learn More

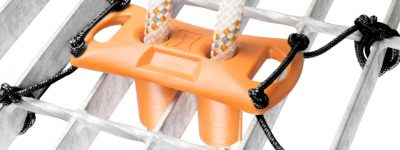

GRATEMATE grating rope protector is specially designed for metal or composite grating walkways known as ‘Kennedy grating’ found on offshore platforms and petrochemical sites as well as process sites.

Two ropes pass through separate apertures to prevent rope on rope friction when in use.

GRN (Glass Reinforced Nylon) plastic construction gives unrivalled strength and durability in use whilst remaining lightweight.

As the rope tubes are separated the grating rope protector can straddle the transverse bars of the grating, allowing it to fit a larger range of grate sizes.

4 cord attachment points to secure GRATEMATE, giving a large range of tie down options. NB Cord not included.

Attach a karabiner using the karabiner holes to easily carry the GRATEMATE on your harness gear loops or stack together for storage.

Maximum rope diameter is 13 mm.

Fitting the GRATEMATE requires no tools, so preventing risk of dropped objects.

Commodity Code: 3926909790

Country of Origin: UK

Made in Britain Horizontal logo - Colour

Features

  • Provides protection for two ropes in separate apertures (13 mm max)
  • Tough reinforced construction
  • Fits wide range of grating sizes
  • 4 points for attachment
  • 2 karabiner holes for transportation
  • Recessed area for unique ID number

Specifications

Sizing: 13mm max rope diameter x 2
Material: Nylon (glass reinforced)
Weight: 0.066 kg
Conformity: Non PPE
